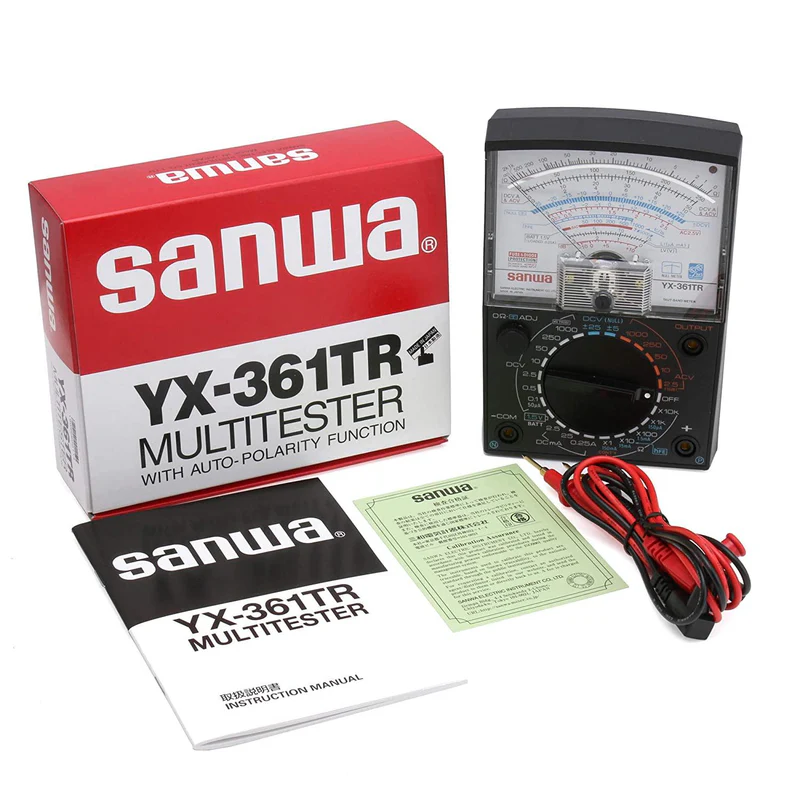

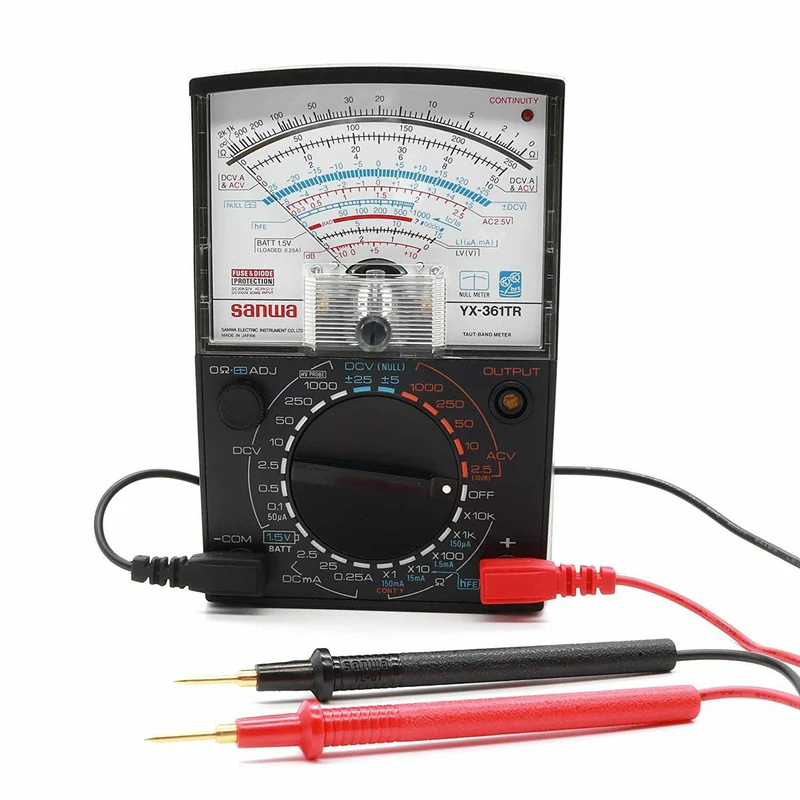

Sanwa YX361TR Analog Multimeter Variety of Measurement Functions using 24 Contact Switch

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa YX361TR is a manual-ranging analog multimeter designed for measuring low-voltage circuits, making it suitable for automotive, household, and industrial applications. It features an analog display, a taut-band meter for accuracy, and has 35 different measurement ranges.

Key Features

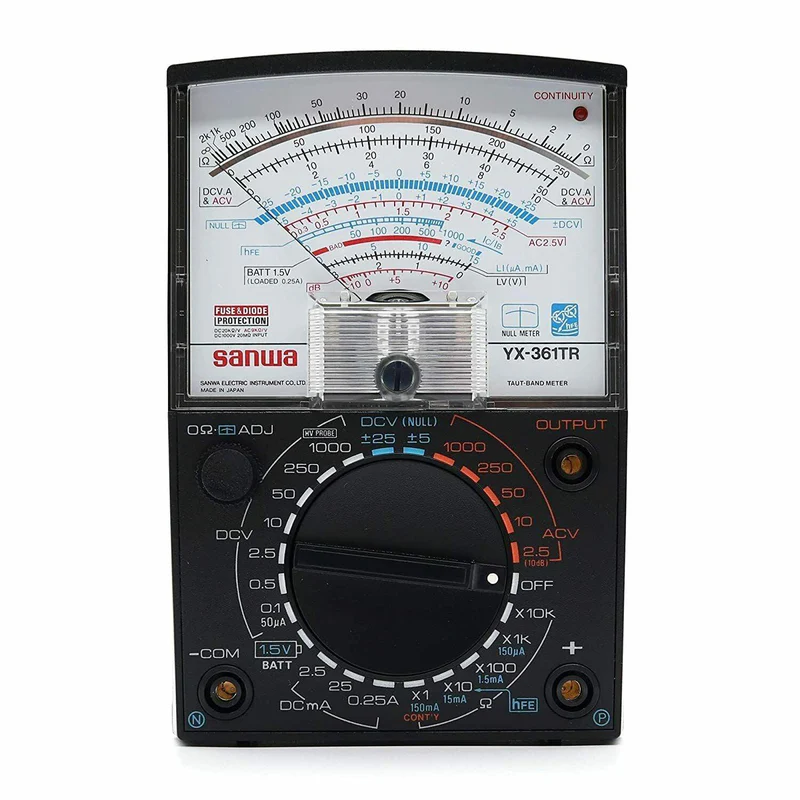

Analog display: Uses a needle and scale for measurement readouts.
Zero-center meter: A feature for measuring ±DCV (positive and negative DC voltage) with the indicator in the center of the scale.
Output terminal: Includes a series capacitor terminal, useful for measuring only the AC portion of a signal that contains both AC and DC.
Safety and durability: The instrument's circuitry is protected by a replaceable 250V/0.5A glass fuse. The hard plastic body protects the device from environmental wear and tear.
Power source: Uses two 1.5V AA batteries and one 9V battery.
Measurement functions: Includes a wide range of capabilities:
1. DC Voltage: Up to 1000V.
2. AC Voltage: Up to 1000V.
3. DC Current: Up to 0.25A.
4. Resistance: Measures up to 20MΩ.
5. dB measurement: Measures signal power in the range of -10dB to +62dB.
6. hFE (Transistor gain): Provides measurement for transistors.
7. Continuity check: An LED indicates electrical conduction.
8. Battery check: Assesses the remaining charge of batteries.
