Description

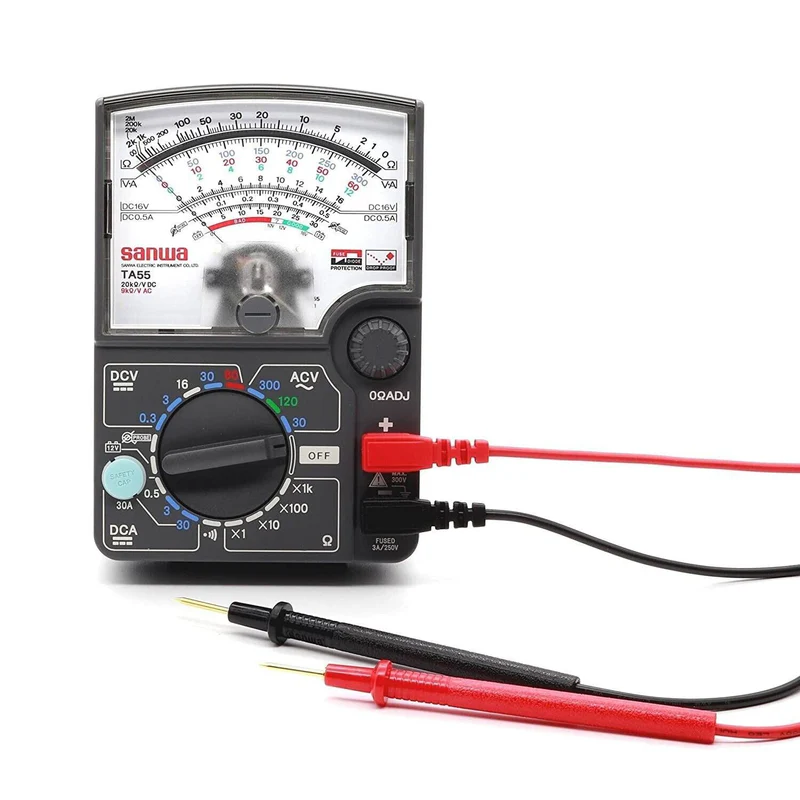

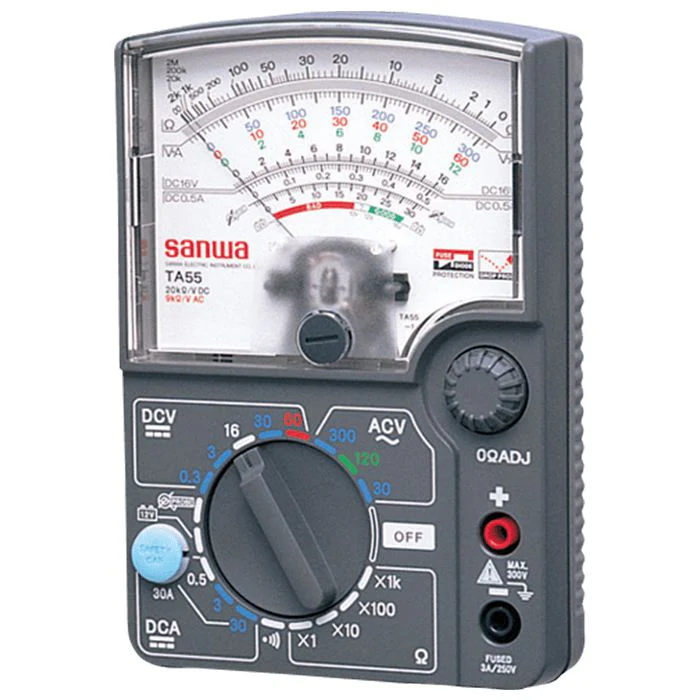

The Sanwa TA55 is a portable analog multimeter specifically designed for automotive applications, featuring a high DC current measurement range of up to 30A. Its design includes a clear, color-coded scale for improved visibility and ease of use in automotive environments.

Key Features
High current measurement: A primary feature is its 30A DC current (DCA) range, which is suitable for testing automotive systems. This can be extended to 300A DC with an optional clamp probe accessory (#CL33DC).
12V battery check: A dedicated function allows for a quick check of 12V automotive batteries.
Intuitive design: The scale and range selector are color-coded to reduce user error and improve readability.
Audible continuity test: The continuity check function includes a buzzer that sounds when resistance is below approximately 70Ω.
Taut-band meter: The meter element uses a taut-band construction, which offers high sensitivity and is more resistant to shock than traditional analog meters.
Protective casing: A durable casing provides drop shock protection, safeguarding the internal circuitry.
Built-in stand: A tilt-stand on the back of the device makes the scale easy to read when placed on a surface.
Safety features: The TA55 has a built-in fuse (3A/250V) to protect against internal circuit damage from overload.
