Sanwa SP-18D Analog Multimeter with Built-In Case

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description

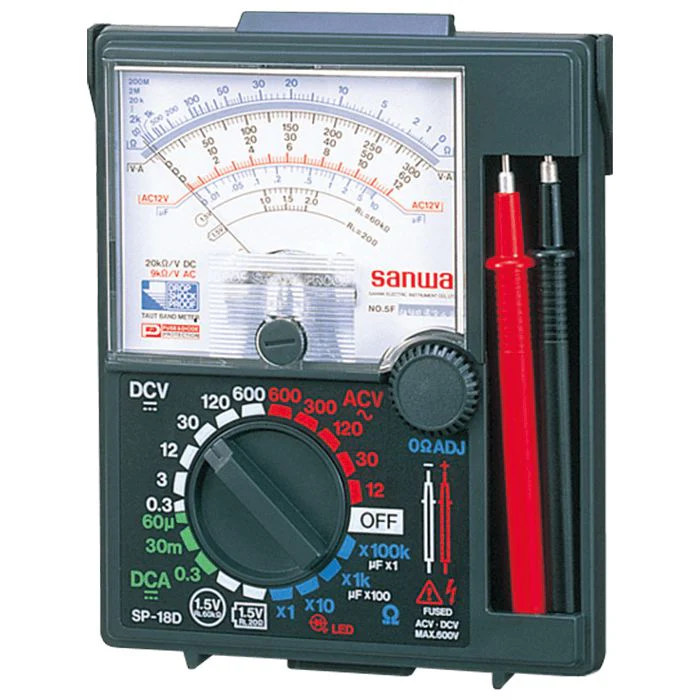

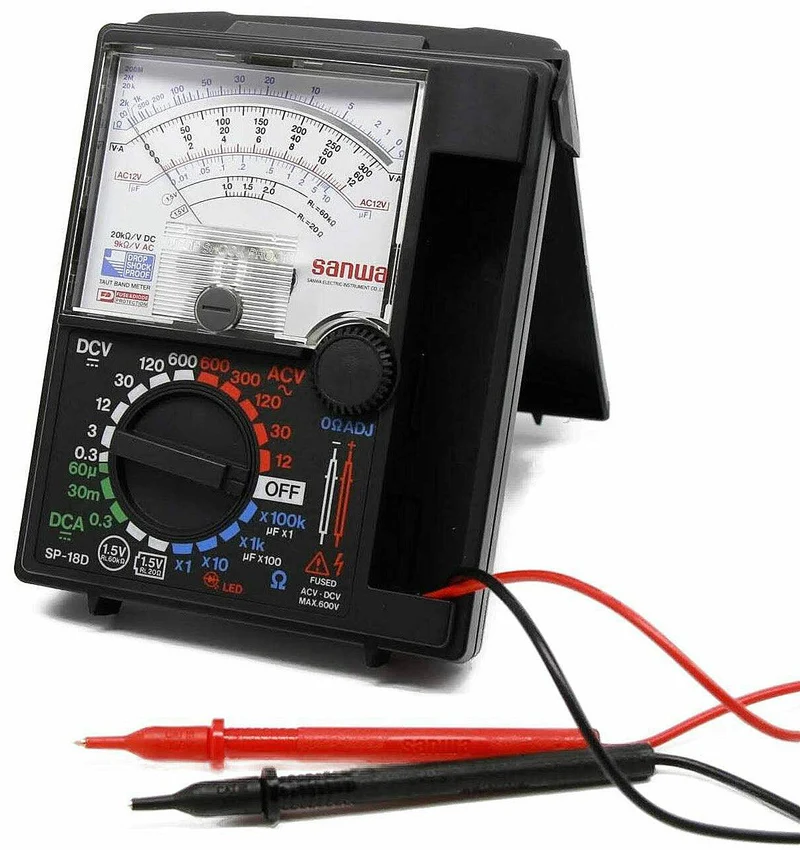

The Sanwa SP-18D is an analog multimeter with a built-in, shock-resistant case, designed for low-voltage electrical testing. Its protective body cover can also be used as a stand, making it portable and suitable for field work.

Key Description
Measurement functions: This versatile meter measures AC and DC voltage, DC current, resistance, and capacitance.
Accuracy: The SP-18D offers an accuracy of ±3% of full scale for AC and DC voltage measurements.
Measurement ranges:
1. DC Voltage: 0.3 to 600V (input resistance: 20kΩ/V).
2. AC Voltage: 12 to 600V (input resistance: 9kΩ/V).
3. DC Current: 60µA, 30mA, 0.3A.
4. Resistance: Up to 200MΩ (with a low 3V terminal voltage for LED checks).
Capacitance: 0.01μF to 1000μF.
Display: Analog (no backlight).
Safety features: The device includes overload protection via a built-in 0.5A/250V glass fuse.
Durability: The protective cover makes the multimeter resistant to drop shocks.
Power source: The unit is powered by two 1.5V AA batteries.
Included accessories: The package typically includes attached test leads, a hand strap, and an instruction manual.
