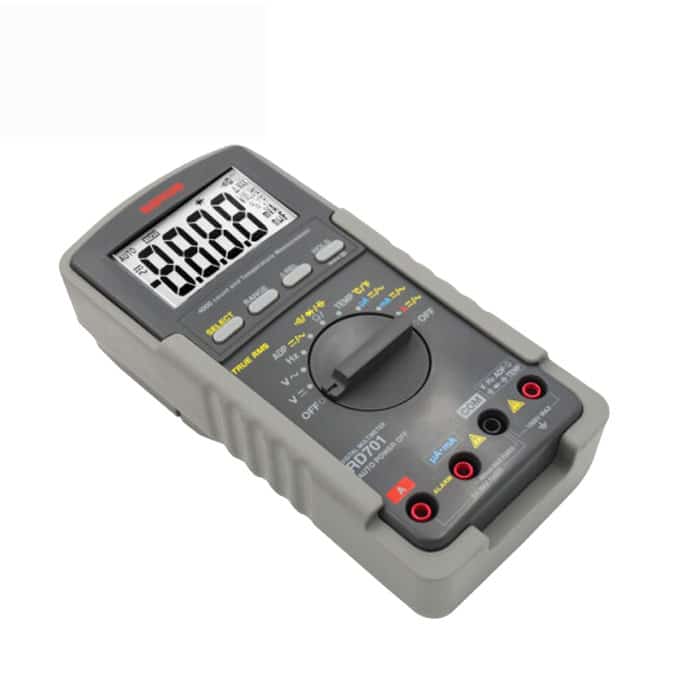

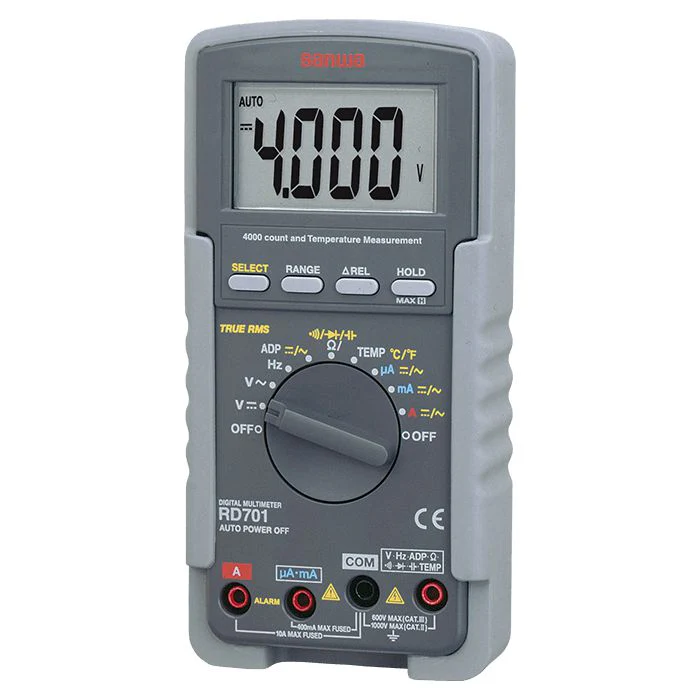

Sanwa RD701 Digital Multimeter with True RMS + High Input Impedance

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa RD701 is a 4000-count, True RMS digital multimeter with high input impedance, designed for low-voltage electronics, home appliances, and communications equipment. It is an upgrade from the RD700, with the main difference being the addition of the True RMS feature.

Key Features
High input impedance: With an impedance of up to 1000MΩ, the RD701 is safe for testing sensitive, low-voltage circuits without interfering with or damaging them.
True RMS measurement: This feature allows for accurate readings of both AC voltage and current, even when the waveform is distorted or "non-sinusoidal".
Measurement functions: In addition to standard voltage (AC/DC) and current (AC/DC) measurements, the RD701 can also measure resistance, frequency, capacitance, and temperature (using an included K-type thermocouple).
Accurate readings: It has a "best accuracy" of 0.3% for DC voltage and an overall 4000-count display resolution.
Auto-ranging: The meter automatically selects the correct measurement range for convenience.
Max value hold: Records the maximum measured value.
Relative value function: Allows you to set a current reading as a reference (zero) and measure subsequent values relative to it.
Auto power-off: Saves battery life by automatically shutting down after 30 minutes of inactivity. This function can be canceled.
Safety features: Includes an alarm to warn against improper test lead insertion and a protective holster with a tilt stand and test lead holder.
Backlit display: Improves visibility in dim lighting conditions.
