Description

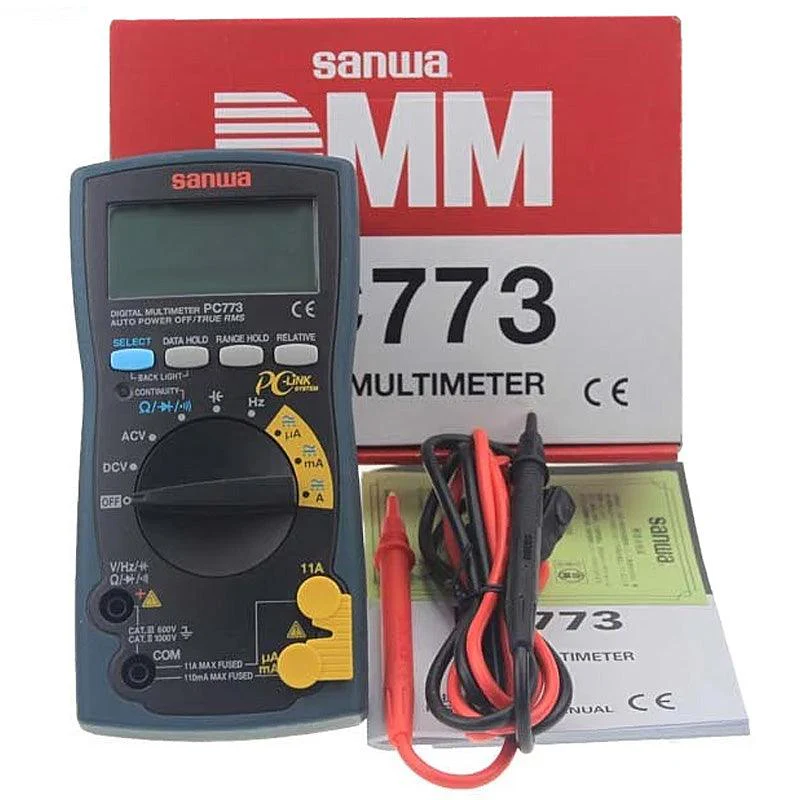

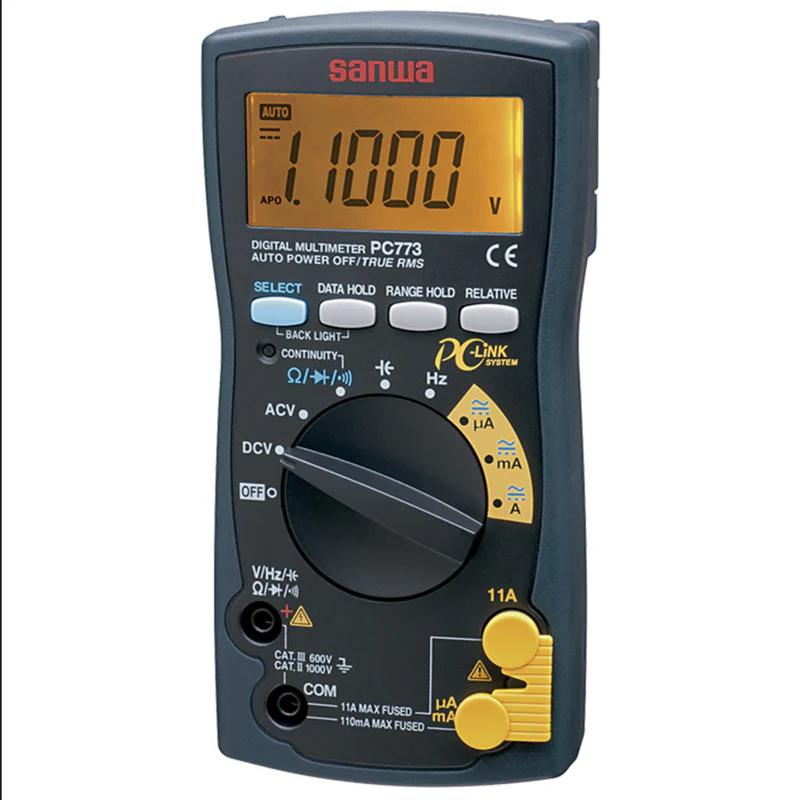

The Sanwa PC773 is a digital multimeter known for its True RMS capability and optional PC connectivity. Designed for both professional and DIY use, it provides high accuracy for analyzing electrical circuits in low-voltage applications, with robust features for enhanced durability and usability.

Key Features
11,000-count display: Offers a high-resolution 4.5-digit LCD readout for detailed measurements, along with a high-speed bar graph.
True RMS: Provides accurate readings for AC voltage and current, even with non-sinusoidal waveforms, making it reliable for modern electronics.
PC Link (optional): Connects to a PC via an optional optical USB cable (KB-USB773) and PC Link7 software. This feature allows for real-time data logging, trend graphing, and easy data export to a CSV file.
Rugged design: The body is made with a thermoplastic elastomer for high resistance against shock and drops. It also includes a tilt stand for convenience.
Safety features: Includes large breaking capacity fuses for overcurrent protection, a safety cap for the current terminal, and is rated for IEC61010 CAT. III (600V) and CAT. II (1000V).
Additional functionalities: Comes with other useful functions such as Data Hold, Range Hold, Relative value, Auto Power Save (which can be canceled), and an audible continuity buzzer with an LED indicator.
Optional temperature measurement: Can measure temperature with an optional temperature probe (T-300PC) and PC Link7 software.
Measurement functions: Measures a wide range of electrical parameters:
1. Voltage: up to 1000V AC/DC
2. Current: up to 11A AC/DC
3. Resistance: up to 110MΩ
4. Capacitance: up to 110mF
5. Frequency: up to 1.1MHz
