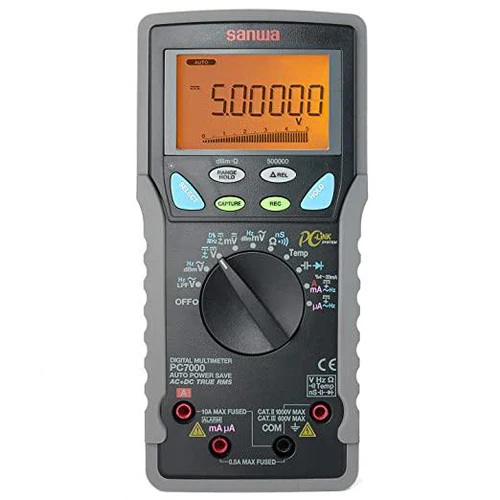

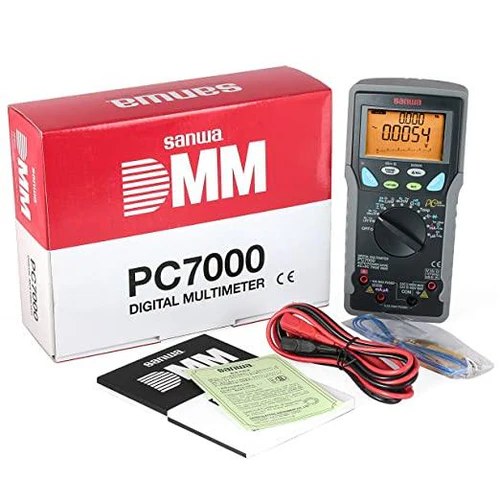

Sanwa PC7000 Digital Multimeter with True RMS and PC Link

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa PC7000 is a high-accuracy, feature-rich digital multimeter designed for professional use, including electrical maintenance, laboratory testing, and industrial applications. Its standout features include a high-resolution display, True RMS measurement, and PC connectivity for data logging and analysis.

Key Features
High-count display: Offers a 50,000-count display, with a selectable high-resolution 500,000-count mode for DC voltage measurements.
Dual display: Allows for simultaneous viewing of two measurements, such as voltage and frequency or AC and DC components.
Backlit LCD: The backlit display, a step up from the PC700, enhances readability in low-light conditions.
High-speed bar graph: A 41-segment analog bar graph provides a fast, visual representation of changing signal levels.
True RMS: Accurately measures distorted or non-sinusoidal AC waveforms.
Low-pass filter: For accurate measurements on variable frequency drive (VFD) circuits.
High accuracy: Offers a basic DC voltage accuracy of 0.03%.
Wide measurement ranges: Capable of measuring a broad range of AC/DC voltage and current, resistance (up to 50 MΩ), capacitance, and frequency.
Temperature measurement: Includes a K-type thermocouple sensor for temperature readings.
PC connectivity: Equipped with an optical isolated interface for data communication with a PC.
PC Link 7 software: This optional software allows for real-time data transfer, logging measurements to a CSV file with timestamps, and opening multiple windows for simultaneous analysis.
Data logging: The Capture (peak hold) and MAX/MIN/AVG recording modes are available for capturing intermittent peaks and tracking measurement trends over time.
Robust construction: The meter features a solid, durable design with excellent ergonomics and comes with a protective holster.
Safety rating: Rated for CAT III 600V and CAT II 1000V applications.
Auto power save: To conserve battery life, the unit automatically powers down after 17 minutes of inactivity, though this function can be disabled.
Function buttons: Includes standard features like data hold and range hold, along with more advanced functions like a one-touch hold.
