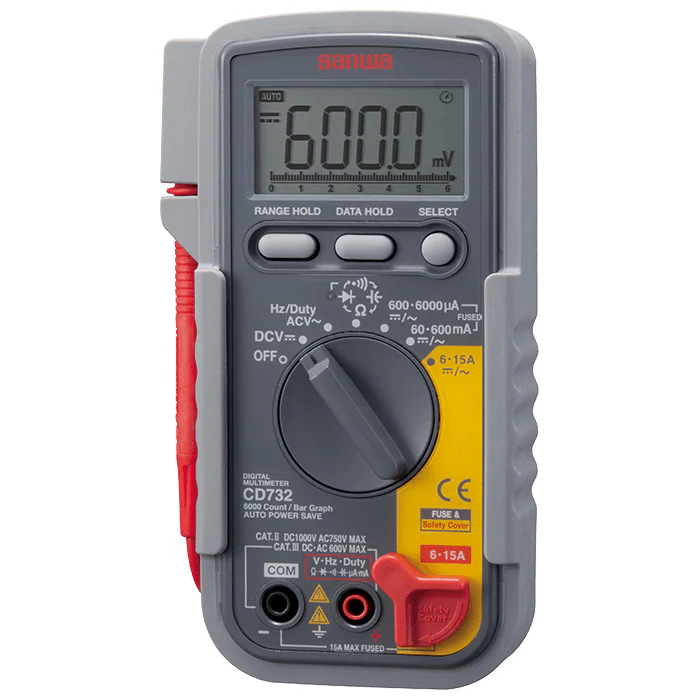

Sanwa CD732 Digital Multimeter with High-Speed Bar Graph & Continuity Buzzer with LED

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa CD732 is a durable, professional-grade digital multimeter (DMM) known for its high-speed bar graph display and enhanced safety features. Made in Japan, it is suitable for a wide range of applications, including analyzing low-voltage circuitry, and testing home appliances and communication equipment.

Key Features
Display: It features a 6000-count digital LCD with a fast, 61-segment analog bar graph for quick visual trend analysis.
Measurement functions:
1. Voltage: Measures up to 1000V DC and 750V AC.
2. Current: Measures up to 15A for both AC and DC.
3. Resistance: Measures up to 60 MΩ.
4. Capacitance: Covers a wide range, from 0.01nF to 3999µF.
5. Frequency: Measures up to 99.99 kHz.
6. Continuity: Features both an audible buzzer and a red LED indicator to confirm a short circuit.
7. Diode test: An open voltage of approximately 2.7V is provided for testing diodes.
Safety and durability: The CD732 is built with user protection in mind.
1. The casing and circuit boards are made from fire-retardant materials.
2. It includes a safety cover over the 6/15A current terminals to prevent incorrect probe insertion.
3. It complies with international safety standards, including CAT III 600V and CAT II 1000V.
Operational features:
1. Auto and manual ranging: You can choose between automatic or manual range selection for measurements.
2. Data hold: Freezes the displayed reading for easier recording.
3. Range hold: Locks the meter to a specific measurement range.
4. Auto power-off: Conserves battery life by automatically shutting off after about 16 minutes of inactivity, though this function can be disabled.

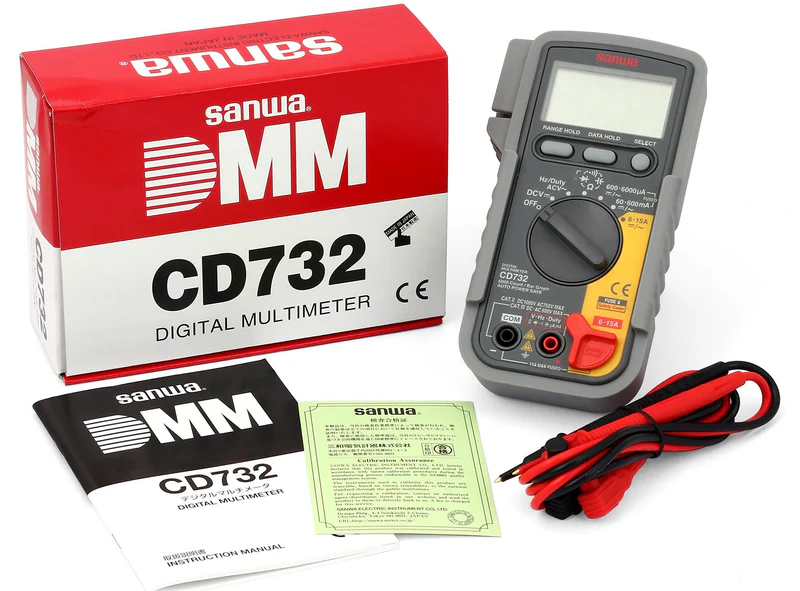

Design: The multimeter includes a holster that can hold the test leads and be used as a wall-hanging bracket for hands-free operation.
