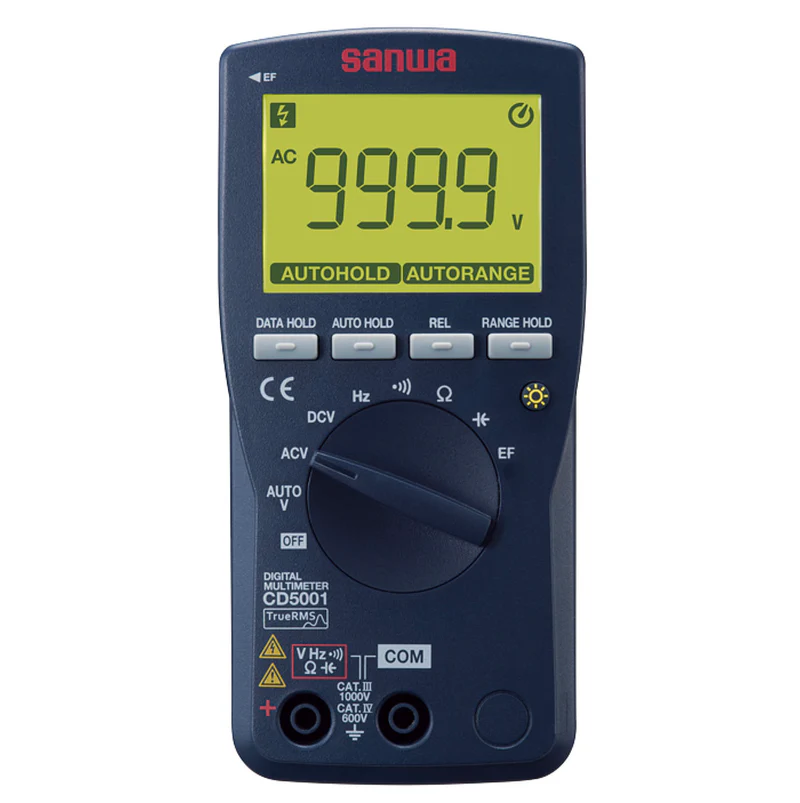

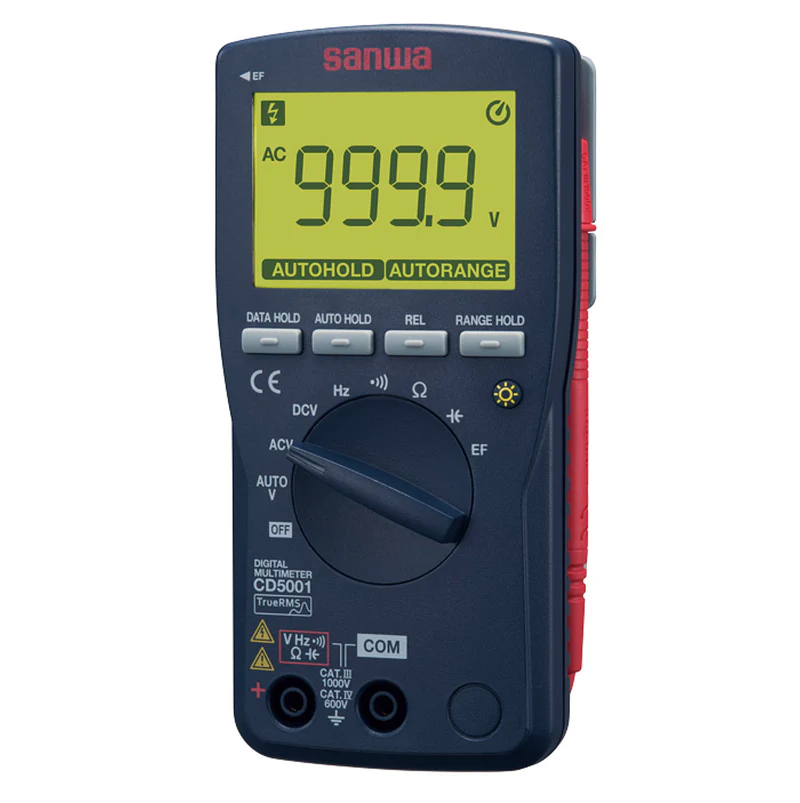

Sanwa CD5001 Digital Multimeter with True RMS and EF Sensing

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The Sanwa CD5001 is a professional-grade digital multimeter designed for low-voltage electrical work that offers True RMS and Electric Field (EF) sensing. It is a compact, portable device with a full 9999-count display for high-resolution measurements.

Key Features
True RMS: Delivers accurate measurements for both standard sinusoidal and non-sinusoidal AC signals. This is critical for working with modern electronics and power supplies.
EF (Electric Field) sensing: A non-contact feature that detects the presence of AC voltage by sensing the electromagnetic field, which is useful for enhanced safety and troubleshooting.
Auto V function: Automatically distinguishes between AC and DC voltage, simplifying operation and speeding up measurements.
Auto Hold: Automatically freezes a stable measurement on the display, which is helpful for taking and recording readings.
High safety rating: Rated at CAT. IV 600V and CAT. III 1000V, making it safe for demanding electrical work.
User-friendly design: Features a large, backlit display for visibility in dark environments, a compact and ergonomic body, and a tilt stand for hands-free use.
Auto power-off: Helps conserve battery life by automatically shutting down after approximately 30 minutes of inactivity. This function is also cancelable.
Portability: As a newer release (since 2025), it is more compact and portable than many standard Sanwa multimeters.
Does not measure current: It's important to note that this specific model measures voltage, resistance, capacitance, and frequency, but does not include an ammeter function for measuring electrical current.

Download
